ATEN CE600 KVM Console/Extender-TAA Compliant

ATEN CE600 KVM Console/Extender-TAA Compliant

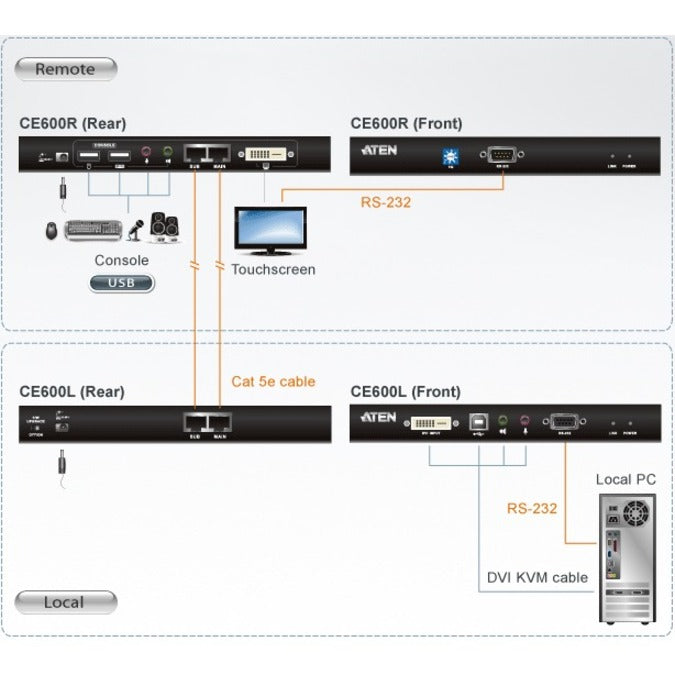

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.

More from the Manufacturer

• Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m - get an excellent, crisp image on your screen over long distance transmissions


• Supports Wide Screen formats


• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)


• Audio Enabled - supports stereo speakers and microphone


• RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)


• Manual compensation control to adjust signal strength in order to compensate for distance


• The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals


• Features ATEN technology that allows A/V transmission over one cat 5e cable


• Allows access to a computer or KVM installation from a remote console (up to 60 m)


• Local and Remote Units connect at distances up to 60 m using Cat 5e cable
