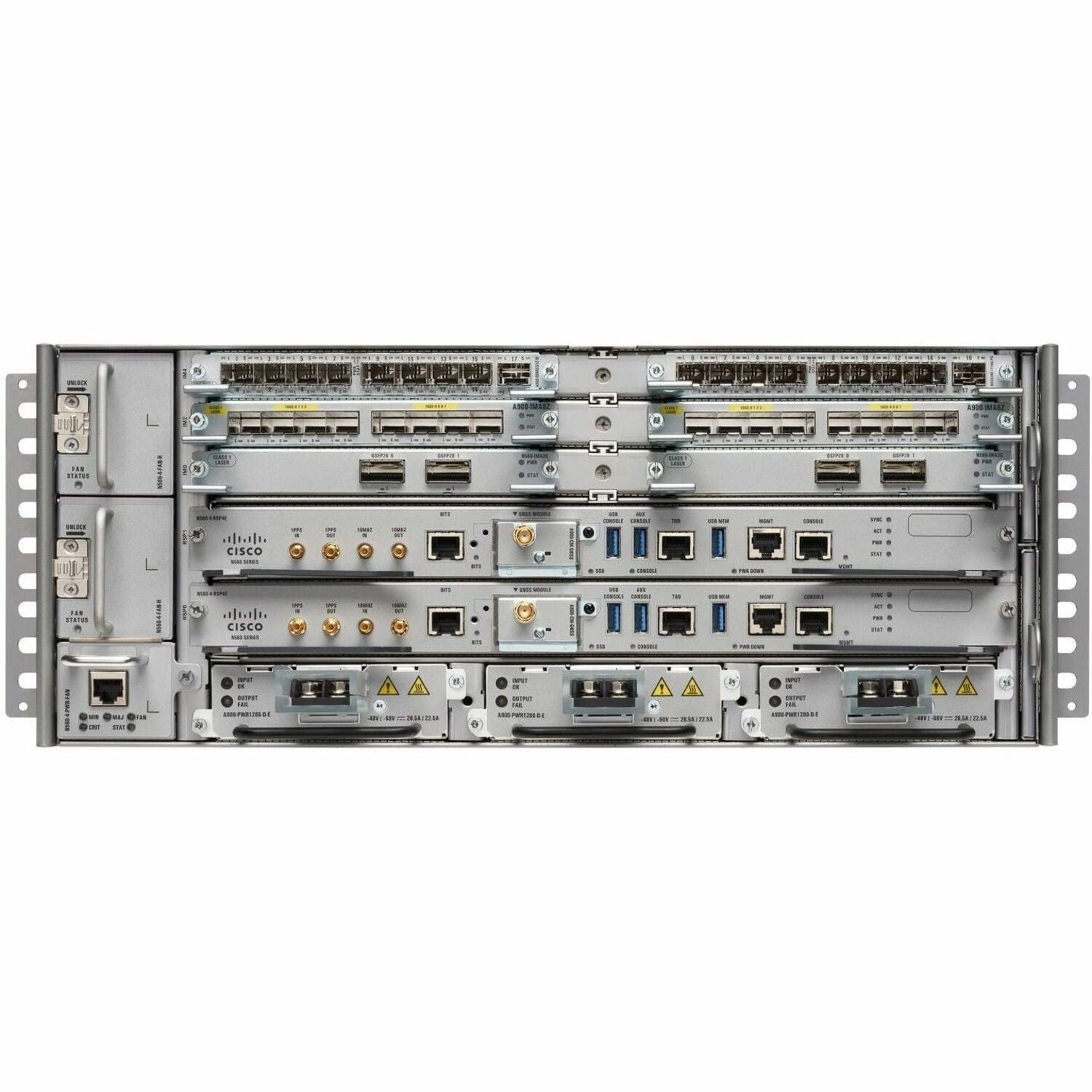

Cisco Network Convergence System 560-4 Router

Cisco Network Convergence System 560-4 Router

Cisco® NCS 560-4 Router is a full-featured, modular and programmable aggregation platform. It is designed for the cost-effective delivery of converged mobile, residential, and business services. The NCS 560-4 provides Redundancy, shallow depth, low power consumption, high Ethernet interface density and high services scale, optimized for aggregation and remote Point-Of-Presence (POP) applications.

The Cisco NCS 560-4 Router provides a comprehensive and scalable feature set, supporting Layer 2 \VPN, Layer 3 VPN, Ethernet VPN (E-VPN) and Multicast services in a compact design.

• 4 RU small form factor with depth <300mm


• Fully redundant platform with 50 msec ISSU support


• Side-to-side or front-to-back airflow with a plenum


• 5G ready with support for Segment Routing and EVPN


• 6 x 100G support on NCS560 4 RU


• Supports industrial temperature conditions


• High Density of 1G/10G/40G/100G ethernet ports. 25G/50G on roadmap


• 100G/200G CFP2 DCO support


• 100G QSFP-DD ZR optics support on roadmap


• Low latency forwarding, typically <10 µs


• Precise frequency and phase/time synchronization using the latest industry standards
