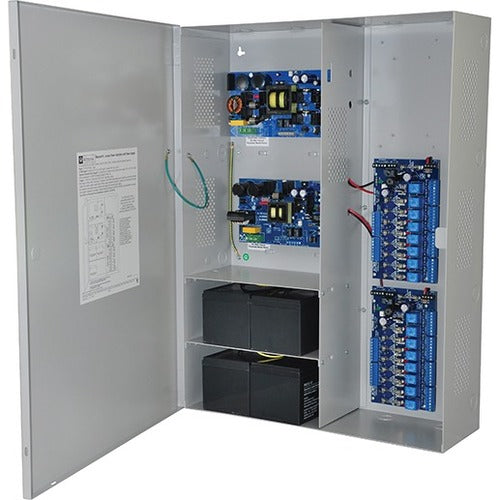

Maximal MAXIMAL75 PDU, 40 lb

Maximal MAXIMAL75 PDU

2 Power Supply/Charger with Access power controllers - 16 fused non-power limited outputs, 8 outputs are 12VDC @ 9.5 amp and 8 outputs are 24VDC @ 9.7 amp, outputs are individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts, fire alarm disconnect is selectable by output, AC & battery monitoring, encl. 26"H x 19"W x 6.25"D, 115VAC input, Accommodates up to 4 - 12VDC/12AH batteries, UL Listed (UL294), cUL Listed, CSFM Approved.

• Filtered and electronically regulated outputs.


• Supervision: AC Fail, Battery Fail, Battery Presence.


• Sixteen (16) auxiliary power outputs (unswitched).


• c) Any combination of the above.


• b) Sixteen (16) form "C" 5A rated relay outputs.


• a) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs.


• Output options:


• Sixteen (16) independently controlled outputs.
