TRENDnet Industrial Gigabit UPoE Splitter, Dual DC Power Outputs, DIN-Rail or Wall-Mountable, Adjustable Voltage Output, TI-SG104

TRENDnet Industrial Gigabit UPoE Splitter, Dual DC Power Outputs, DIN-Rail or Wall-Mountable, Adjustable Voltage Output, TI-SG104
TRENDnet's Industrial Gigabit UPoE Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP switch adjusts output power to 12V, 16V, 24V, or 48V in order to match power requirements for non-PoE devices. The UPoE splitter's dual DC power output provides greater device compatibility.UPoE Powered

No power adapter necessary; the UPoE splitter takes a UPoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).

• GIGABIT ETHERNET : 1 x Gigabit UPoE input port, 1 x Gigabit output port


• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Gigabit UPoE Splitter, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)


• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-SG104, Industrial Gigabit UPoE Splitter is backed and supported with 3 years of TRENDnet Manufacturer Protection.


• UPoE POWERED: No power adapter necessary; the UPoE splitter takes a UPoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).

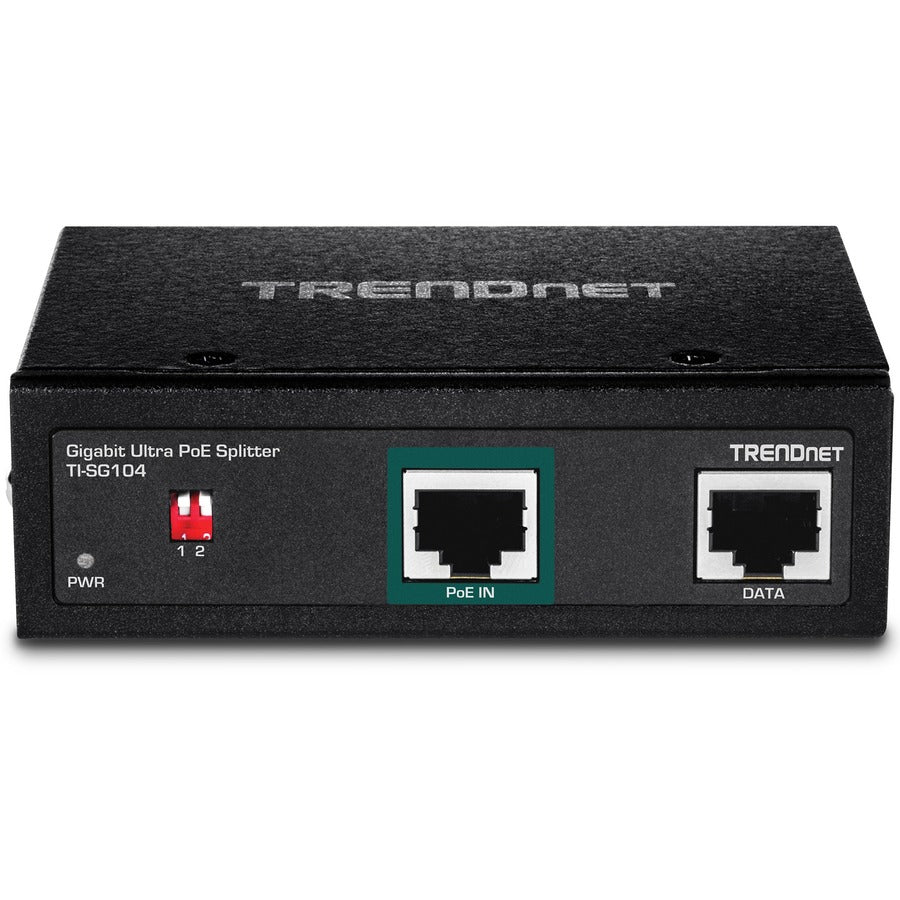

• ADJUSTABLE VOLTAGE OUTPUT: Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.25A) to match non-PoE device power requirements.


• WALL MOUNTABLE: The UPoE splitter's wall mountable design accommodates most installation scenarios.

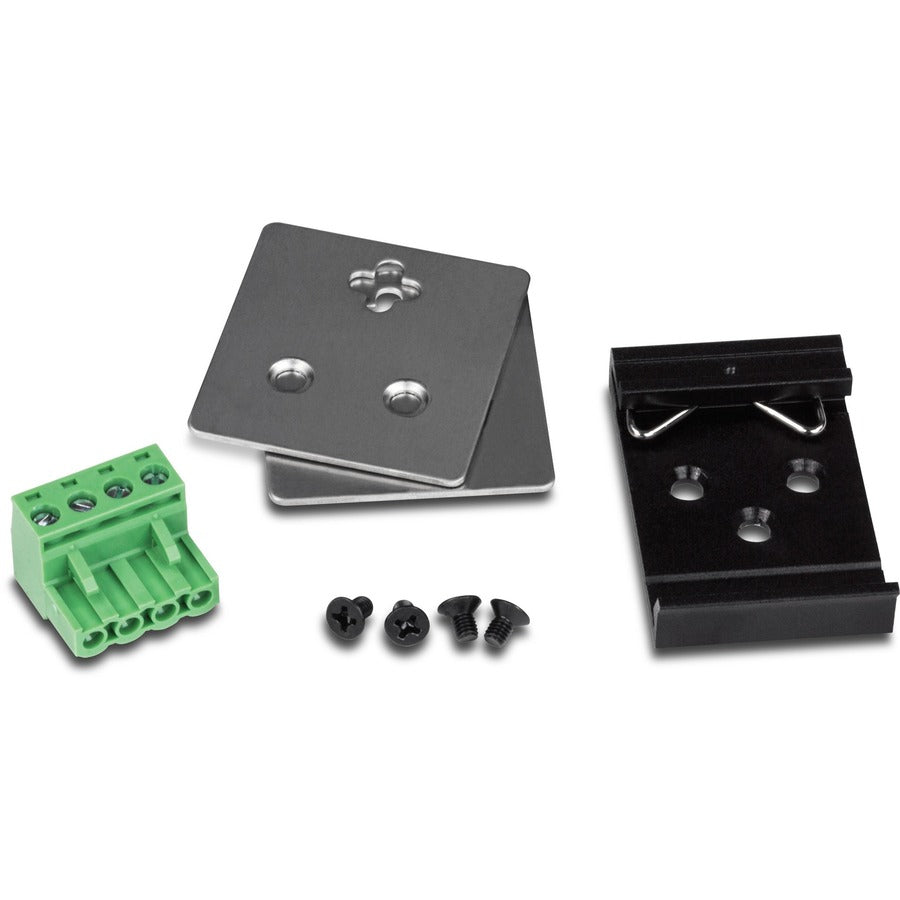

• DUAL DC POWER OUTPUT TERMINAL BLOCK: The UPoE splitter includes a dual DC power output terminal block, powering for up to two devices


• For best performance pair with UPoE switches or injectors; Save on installation and equipment cost


• Full Duplex Gigabit speeds: IEEE 802.3bt compatible

More from the Manufacturer

• NDAA / TAA compliant (U.S. and Canada only)


• IEEE 802.3bt compatible


• Full Duplex Gigabit speeds


• Save on installation and equipment cost


• For best performance pair with UPoE switches or injectors


• Adjustable voltage output supports 12V, 16V, 24V or 48V devices


• A single Ultra PoE source can power up to two devices


• Splits a gigabit PoE signal into separate power and data sources


• Power a non-PoE device up to 100m (328 ft.) away from PSE
